7m Mercedes Tourer

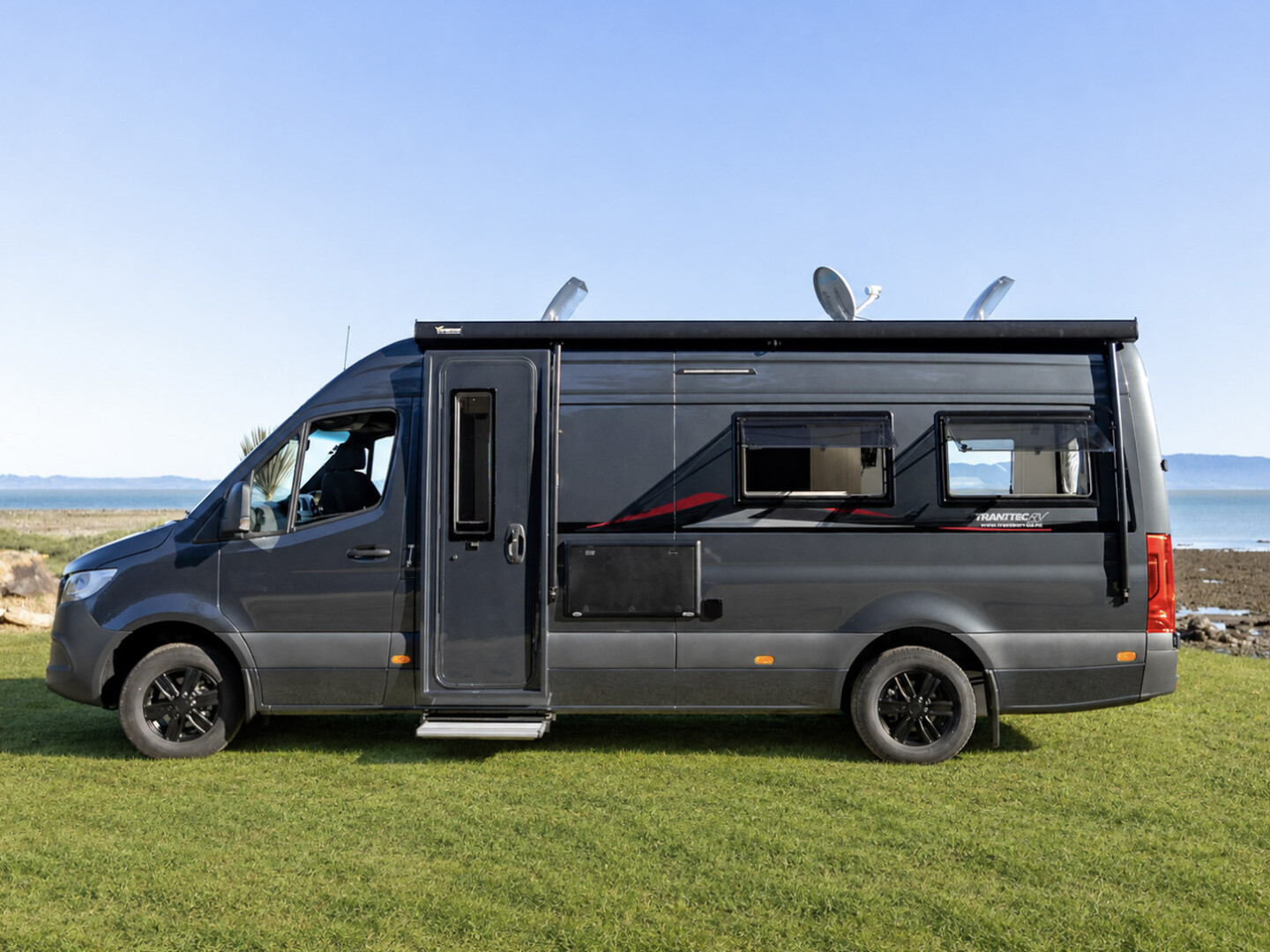

7M Mercedes Luxury 2 Berth Motorhome

Our Mercedes Luxury Tourer has a unique design which maximizes on style and living space. This motorhome represents stunning design, usage of space, and a finished result that will make you proud to own a Tranztec RV Tourer.


Mercedes Sprinter 6.9M LWB.

VEHICLE: Mercedes Sprinter 316 VS30 LWB RWD

Engine Specification: 2.14 litre 160HP turbo diesel Manual or Automatic 7 speed Euro 6,

Power Equipment: Power steering, Adaptive Electronic stability program, cruise control, Reversing camera.

5 Year Mercedes Warranty (200,000kms) 2 Year Fit Out Warranty

Measurements: Length 6.9 meters Width: 2 meters (Plus side mirrors) Height: 2.85 meters (including a standard size wind up satellite) Interior headroom: 1.90. meters

Motorhome Door (No Slider)

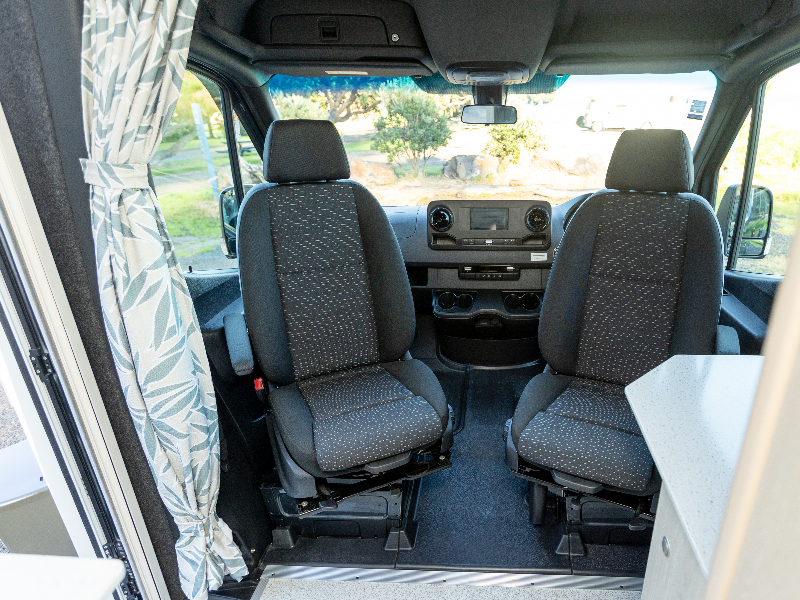

DRIVING: Seating configuration: Seatbelts for two in the driving cab both seats swiveling. (Optional extra: seatbelts in rear living area for passengers)

Reversing Camera

Radio/Stereo: Radio/CD player, speakers in driving cab 12V Socket: Cigarette lighter adapter which is suitable to charge up cell phones and camera batteries.

Fuel: Diesel, 71 litre tank Fuel consumption: approximately 7L per 100KM

Air conditioning: Standard Mercedes air conditioning when driving.


Sleeping configuration: One double bed 1900 x 1700 or two singles 1900 x 750,

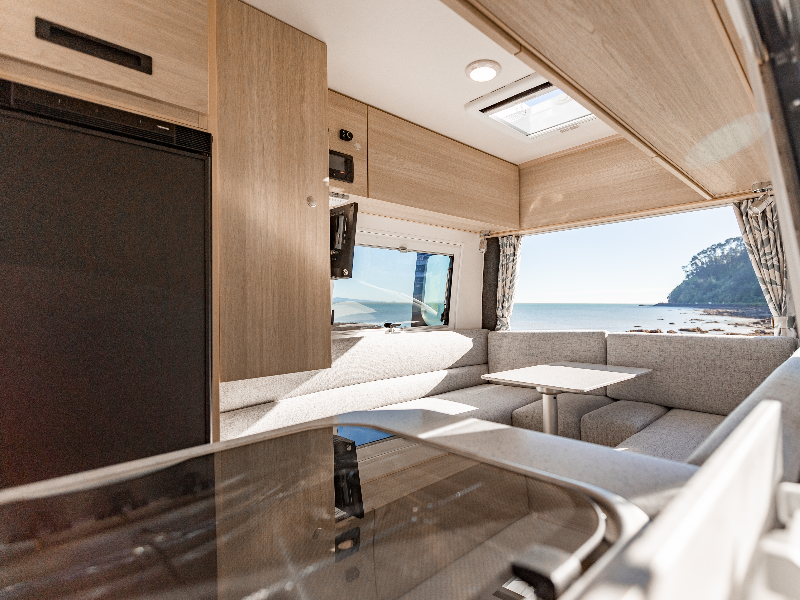

Fridge Freezer: 154L 12V Fridge System

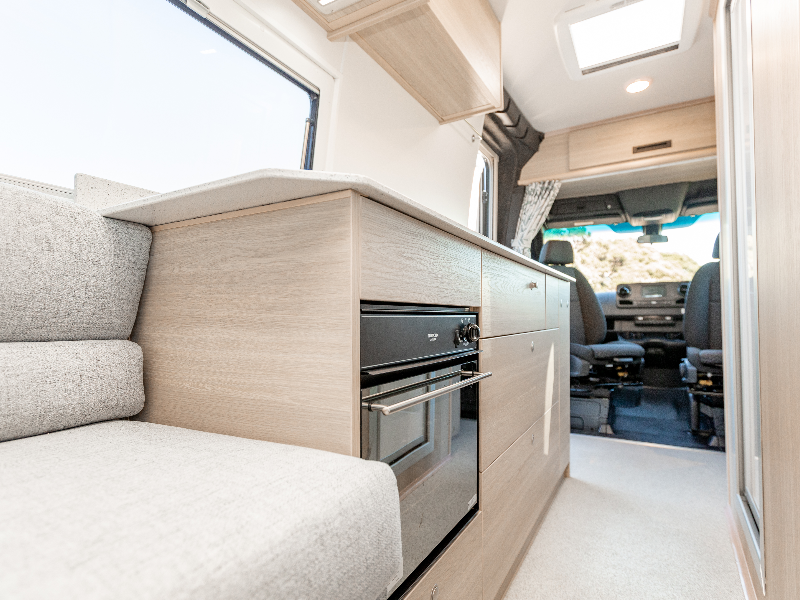

Gas cooker: 3 burner gas hob, oven with grill.

Gas bottle: 1 x 9kg (or Two x 4 kg gas bottles option)

Microwave: Optional - Operates on 240volt only

Range hood

19” TV, DVD player with free view Satellite dish – Kiwisat Automatic satellite dish

Water heater: Water heater works on gas or 240V power and is operated by internal switches.

Fresh water Tank: Capacity- 105litres, Grey Water tank: Capacity - 125litres, holding tank for grey wastewater generated from the shower and kitchen sink.

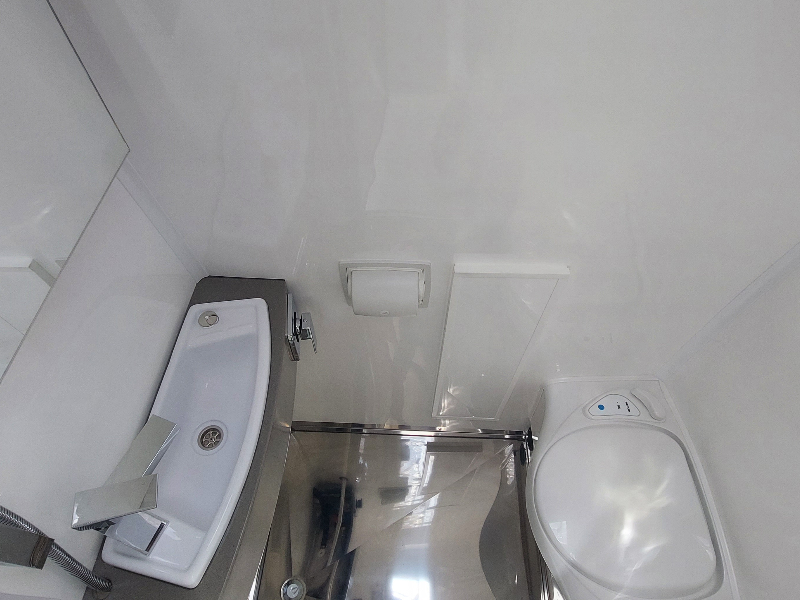

Bathroom: Hot and cold pressurized water shower cubicle with full size hand basin and mirrored storage cabinet, Roof vent & light, towel rail, heating duct.

Toilet: Located in cubicle with shower. Flush toilet waste goes into cassette holding tank which is accessed from exterior compartment door.

240v Power supply: 240Mains RCD protected with power lead.

Batteries: 115 AH Lithium Ion. The Batteries are recharged by engine alternator when driving, from the mains power supply, and solar power.

Solar Panel: 180W solar panel

Lighting: LED Interior lights operate both off 12V battery and 240V mains supply

Heating: Rear cabin air heating operates on Diesel and is thermostatically controlled to ensure a comfortable temperature.

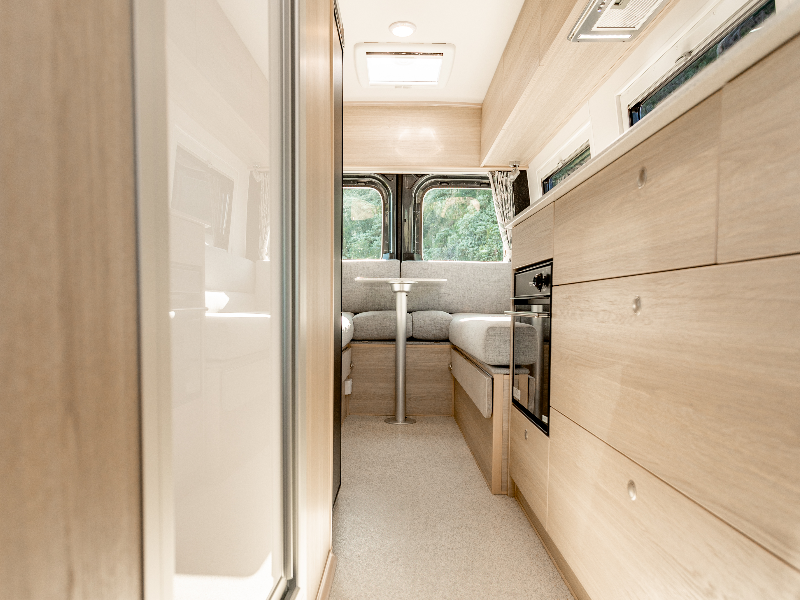

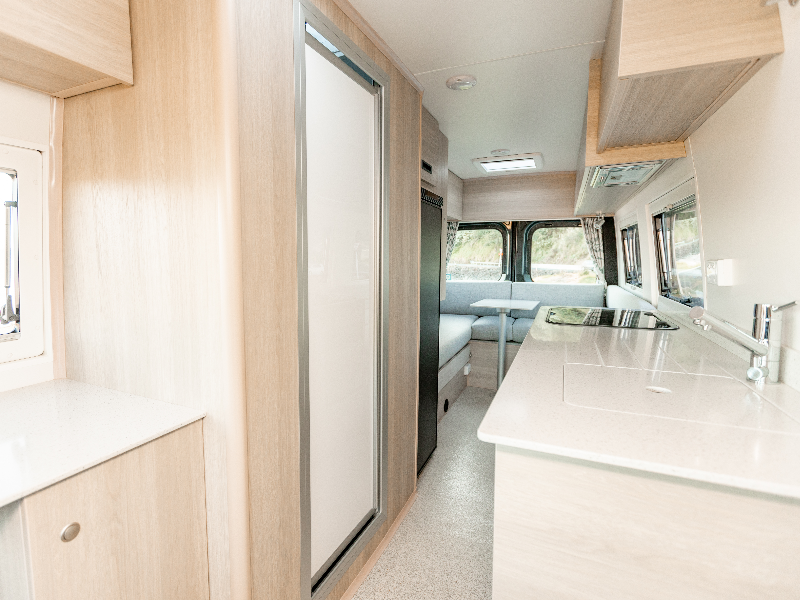

Storage: Generous overhead cupboard storage, space under seats at rear of vehicle and along wall, hanging wardrobe

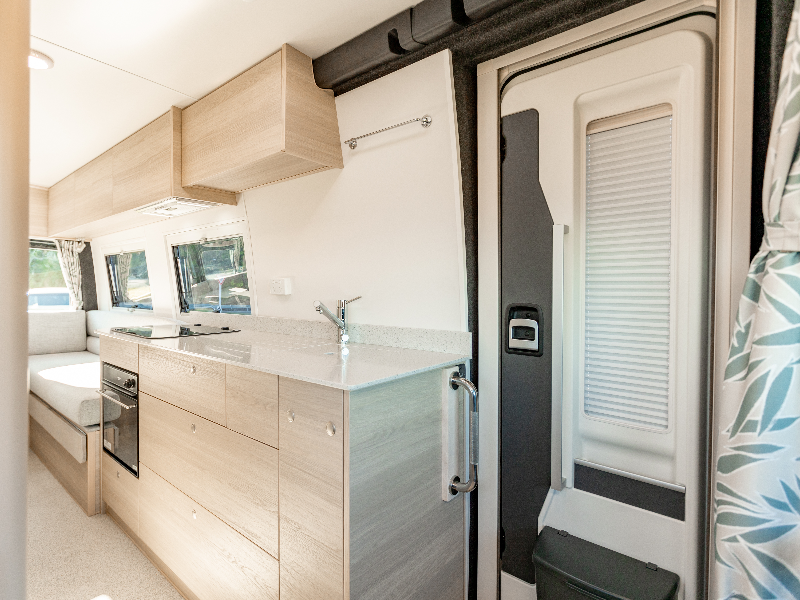

Kitchen features fold up bench extension and spacious drawers.

Electric Step: Easy switch inside motorhome single door, auto retracts when vehicle is started.

Roof vents: One in the kitchen area and one over the bed / dining area at the rear plus one in shower / toilet area.

Windows: Double glazed in living area with blinds and insect screens

Flooring: Easy care, non-slip vinyl

Interior: Squab Curtain and Benchtop Color options to personalize your motorhome to suit you.

Internal access: Internal access between driver’s cab and living area.

Exterior access: Side door with electric step plus, chrome grab handle. Rear Double door access to storage under lounge seating.

Tranztec Side graphics, Full Self-Containment Certification, Gas and Electrical Certification all to NZ Standards.

Optional Extras / Upgrades –

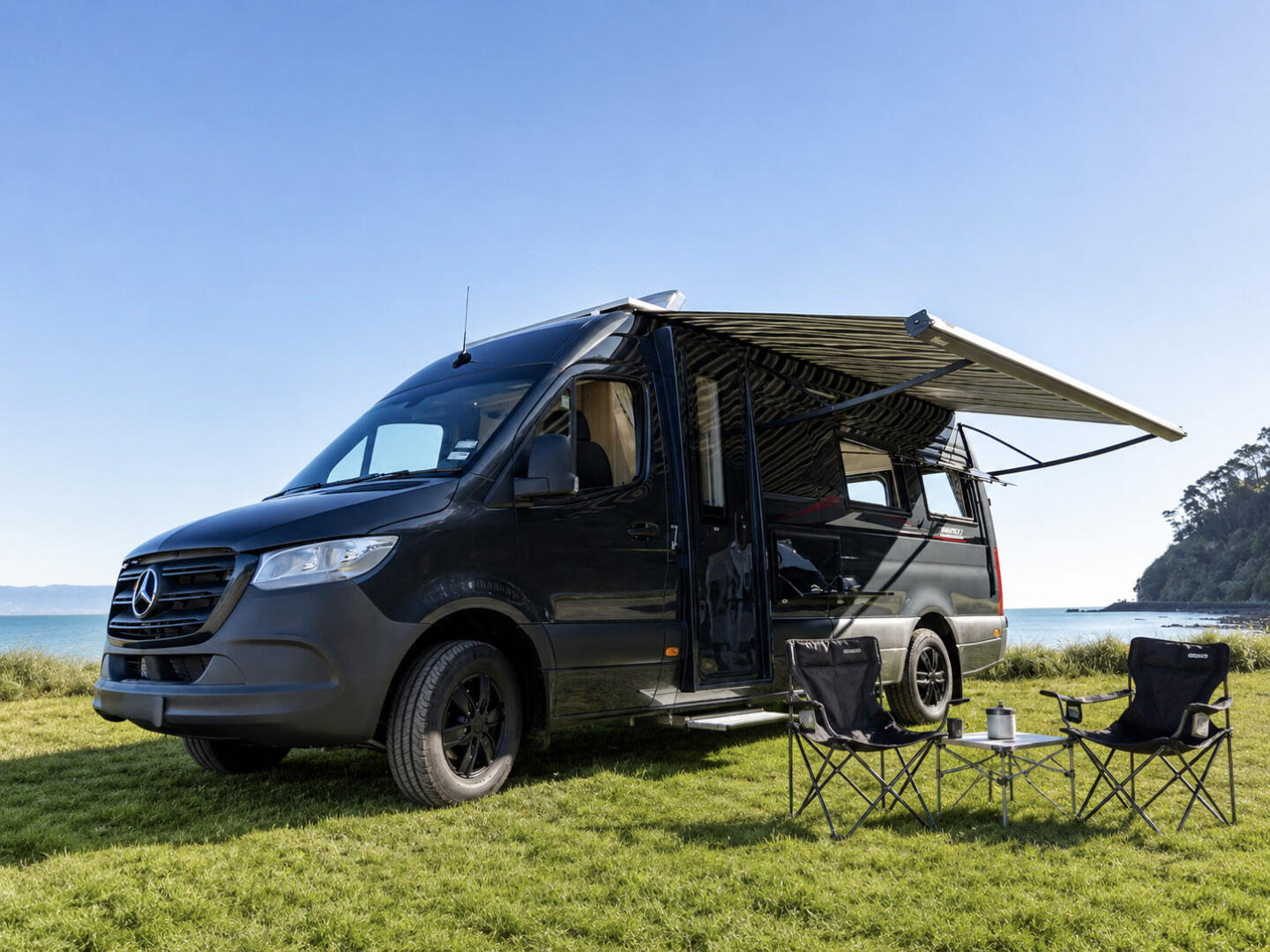

4M Shade Maker Awning, Bike rack, Sky Tv Card Slot, Tow Bar, Grey Water Waste Pump, Black Tank etc.
